Material library

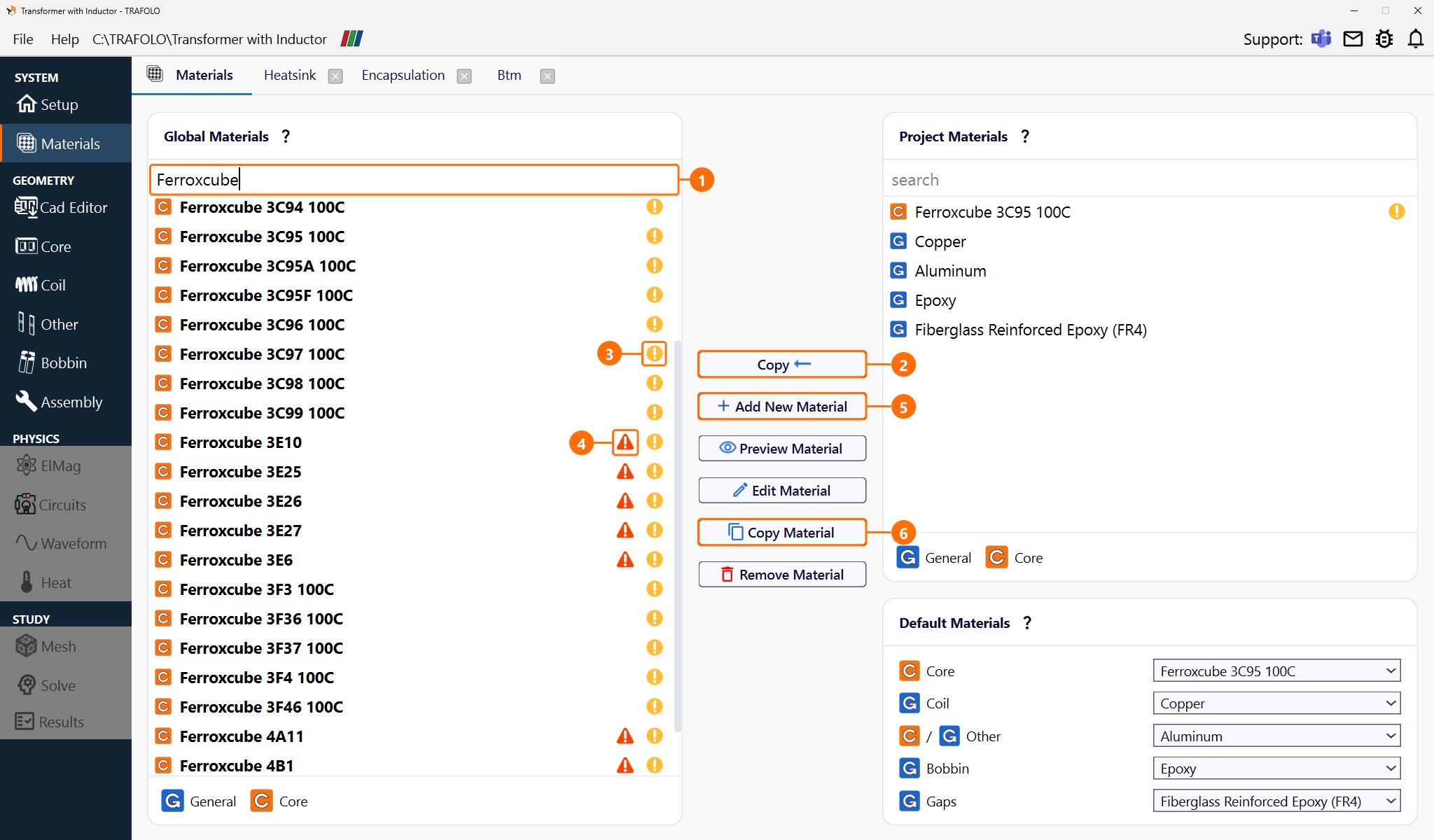

TRAFOLO comes with 2360 core materials from 60 manufacturers and one research lab, and 48 general materials. They are in Global Materials on the Materials tab: type a name into the search box (1) and Copy (2) the material into the project.
What the core materials hold
| Data | Materials | Used for |
|---|---|---|

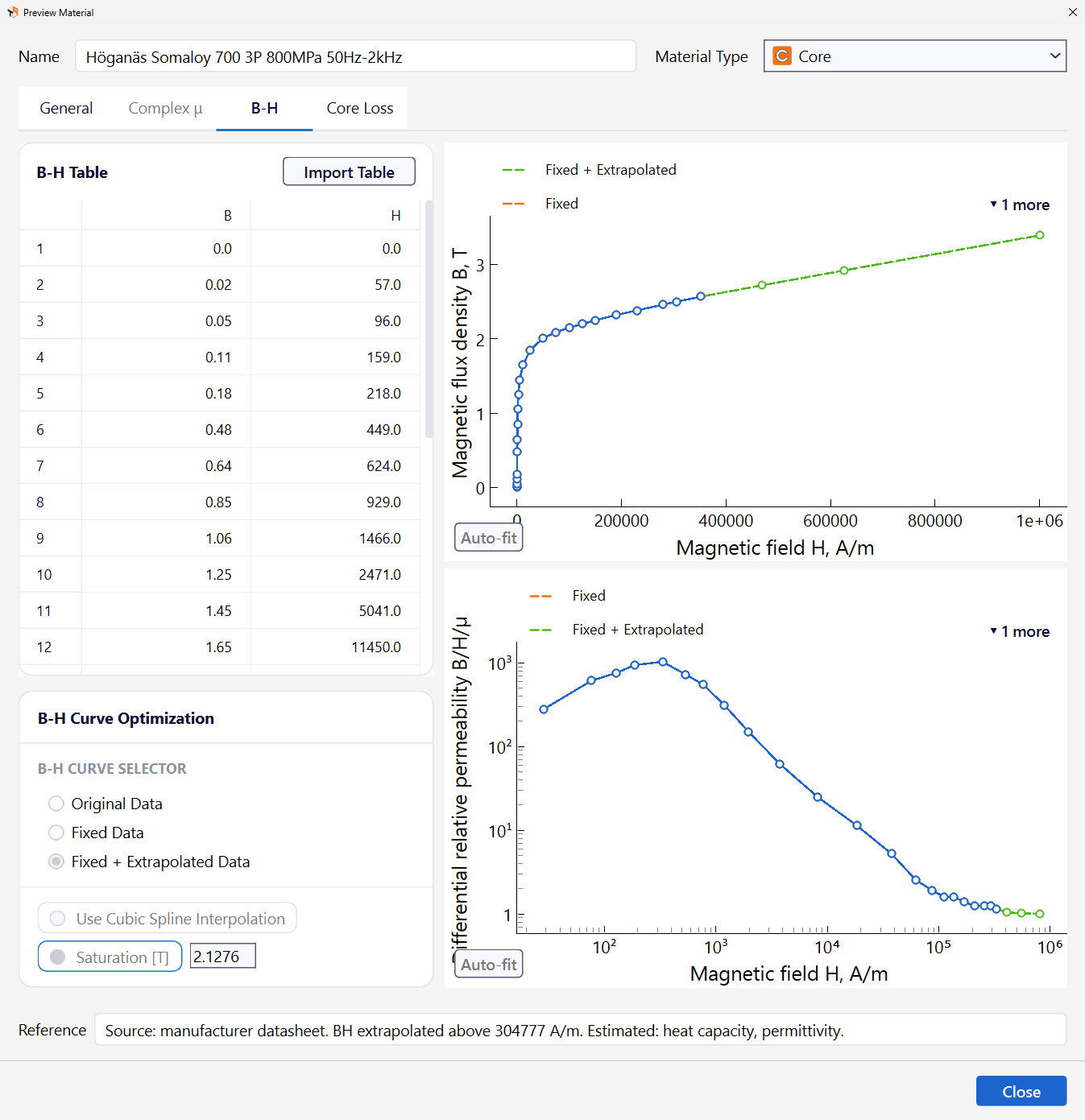

| B-H curve [T, A/m] | 1354 | A non-linear core that saturates (B-H tab). |
| Complex permeability μ′, μ″ over frequency | 192 | Frequency-dependent permeability in Harmonic and Inductance runs; the core loss comes from μ″ (Complex μ tab). |

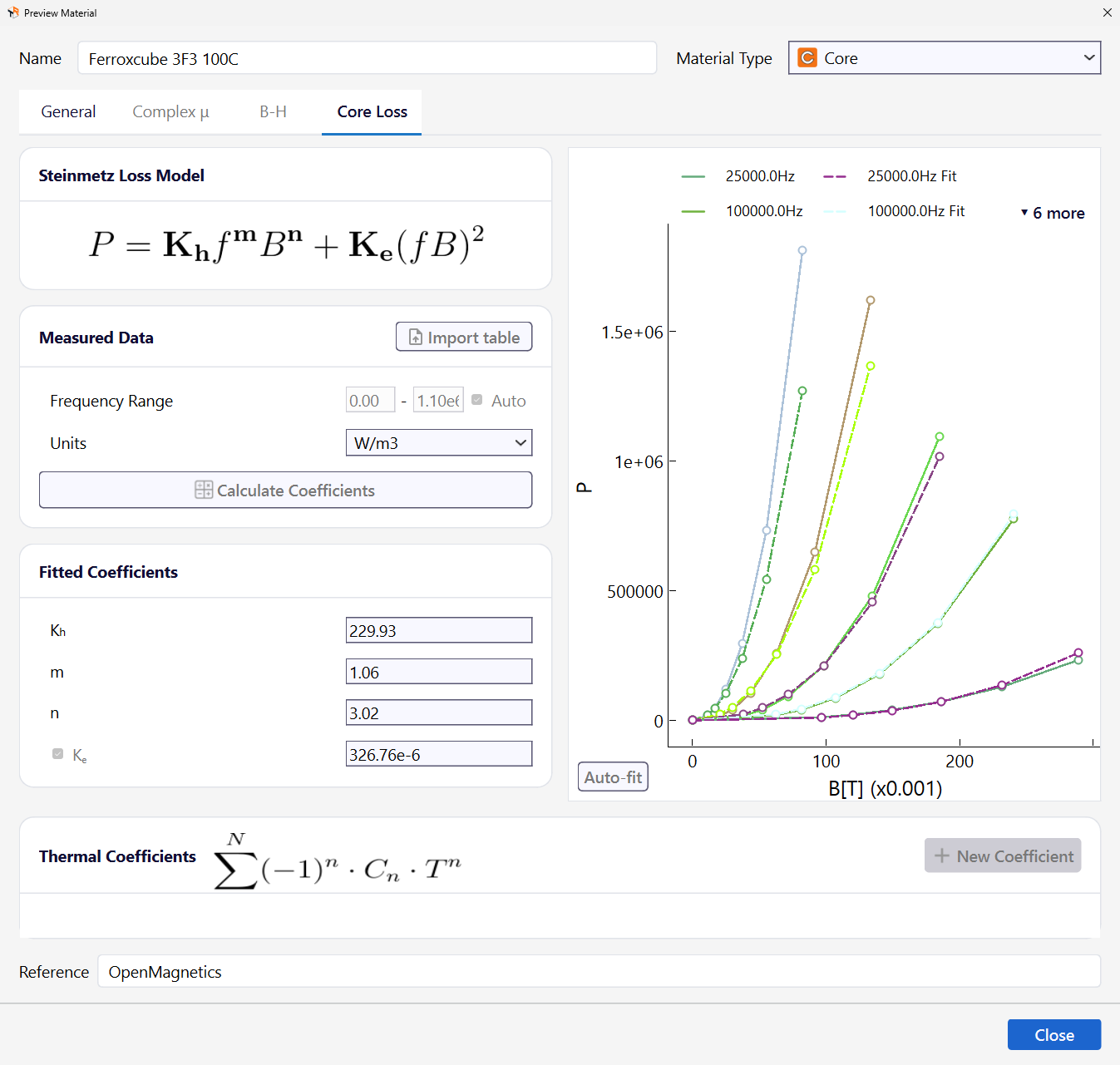

| Core loss table P(f, B) | 1497 | Measured losses; Calculate Coefficients fits the Steinmetz coefficients to them (Core Loss tab). |
| Steinmetz coefficients Kh, m, n, Ke | 1720 | The core loss after the field solution: from the flux density amplitude and frequency in harmonic runs, from dB/dt in transient runs. |
| Thermal Coefficients of the core loss | 85 | Core loss that changes with the core temperature. |
| Density, Heat Conductivity, Heat Capacity | 2360 | Heat transfer runs. Where the source gives none, a typical value of the material family is used; the Reference says "estimated" (892 materials, mostly thermal values). |
| Laminate Thickness, Stacking Factor | 1201 | Laminated cores (sheets and tapes). |
Not every material holds every kind of data: 533 hold only their permeability. A marker at the end of a row flags missing data; its tooltip says what is missing: yellow circle (3) Missing B-H Table, red triangle (4) Missing Steinmetz Coefficients, orange flame Missing heat transfer data. Check the tabs of a material before you rely on it, and add the data your run needs: see Core Properties and Models.
Manufacturers
The number of core materials per manufacturer, and how many of them hold each kind of data. Names as in Global Materials; some carry the test temperature or frequency range, for example Ferroxcube 3C90 100C or Baosteel (WISCO) 18QG080 50-60Hz.
| Manufacturer | Materials | B-H curve | Complex μ | Core loss table | Steinmetz |
|---|---|---|---|---|---|
| Baosteel | 241 | 241 | – | 241 | 241 |
| voestalpine | 138 | 138 | – | 138 | 138 |
| TDG | 118 | – | 3 | 9 | 24 |
| Nippon Steel | 110 | 110 | – | 110 | 110 |
| JFE Steel | 99 | 82 | – | 82 | 90 |
| Micrometals | 93 | – | 2 | 93 | 93 |
| Magnetics | 89 | 1 | – | 4 | 82 |
| ACME | 84 | – | 55 | 17 | 17 |
| POSCO | 82 | 82 | – | 82 | 82 |
| Huoh Yow | 77 | – | 2 | – | 19 |
| DMEGC | 75 | 48 | 29 | 47 | 50 |
| TDK | 74 | 18 | 30 | 21 | 22 |
| Cogent | 68 | 68 | – | 68 | 68 |
| Tata Steel | 64 | 64 | – | 64 | 64 |
| thyssenkrupp | 62 | 62 | – | 62 | 62 |
| Shougang | 57 | 57 | – | 57 | 57 |
| VACUUMSCHMELZE | 55 | 55 | – | 55 | 55 |
| Chang Sung | 54 | 32 | – | 32 | 54 |
| Poco | 48 | – | – | – | – |
| Aperam | 47 | 47 | – | 47 | 47 |
| TAK | 47 | – | 3 | – | 16 |
| Sincores | 46 | – | 2 | – | 1 |
| Proterial (Hitachi Metals) | 40 | 4 | – | 5 | 15 |
| Fengheryin | 35 | – | 6 | – | 1 |
| Höganäs (Hoeganaes) | 34 | 33 | – | 33 | 34 |
| AK Steel | 28 | 28 | – | 28 | 28 |
| Carpenter | 26 | 26 | – | 26 | 26 |
| Ferroxcube | 26 | – | 15 | 17 | 18 |
| Acroni | 25 | 25 | – | 25 | 25 |
| Encore Electronics | 25 | – | – | – | – |
| Fair-Rite | 22 | – | 22 | 7 | 9 |
| Stalprodukt | 22 | 22 | – | 22 | 22 |
| Crown Ferrite | 21 | – | – | – | – |
| Orb | 21 | 21 | – | 21 | 21 |
| KDM | 20 | – | – | – | – |
| Cosmo Ferrites | 18 | – | – | – | 11 |
| Guangdong Ferrum | 16 | – | 2 | – | 5 |
| China Steel | 15 | 15 | – | 15 | 15 |
| Magnetic Metals | 15 | 15 | – | 15 | 15 |
| Curie Industrial | 14 | – | – | – | 12 |
| Metglas | 12 | 12 | – | 11 | 12 |
| Würth Elektronik | 12 | – | 12 | – | – |
| Sinomag | 10 | 8 | 8 | – | 8 |
| NLMK | 7 | 7 | – | 7 | 7 |
| Nicera | 7 | – | – | – | – |
| Arnold Magnetic | 6 | 6 | – | 6 | 6 |
| Fluxtrol | 6 | 6 | – | 6 | 6 |
| Phonon Meiwa | 6 | – | – | – | – |
| Tecstar Technology | 6 | – | – | – | – |
| Acal BFi | 5 | 5 | – | 4 | 5 |
| Sumitomo Electric | 5 | 5 | – | 5 | 5 |
| Samwha | 4 | – | – | 4 | 4 |
| Shandong Jianuo | 4 | – | – | 4 | 4 |
| Shinn Der | 4 | – | 1 | – | 3 |
| Diamet | 3 | 3 | – | 3 | 3 |
| Ferri-Tech | 3 | – | – | – | – |
| VDM Metals | 3 | 3 | – | 3 | 3 |
| MK Magnetics | 2 | 2 | – | – | 2 |
| Magnetec | 2 | 2 | – | 1 | 2 |
| NASA Glenn Research Center (measured data) | 1 | 1 | – | – | 1 |
| Yean Shing | 1 | – | – | – | – |
Where the data comes from
The Reference field of each material names its source: a manufacturer datasheet with its year (1300 materials), a published material data collection (1049), or a measurement report or manufacturer publication (11). Datasheet values hold for the datasheet's test conditions; check the temperature and frequency range against your design.
Credit: many core materials come from the open-source material database of OpenMagnetics (MAS on GitHub); their Reference reads OpenMagnetics, as for Ferroxcube 3F3 100C above. We thank the OpenMagnetics team for publishing the data.
General materials
48 materials for windings, shields, insulation and cooling: metals such as copper, aluminum, silver and brass; insulation, potting and PCB materials such as epoxy, FR4, PTFE and mica; ceramics; transformer oil, water, thermal paste and air.
Add your own materials with Add New Material (5), or start from a library material with Copy Material (6). They are saved for your Windows user and appear in Global Materials in normal type; the materials that come with TRAFOLO are in bold.
